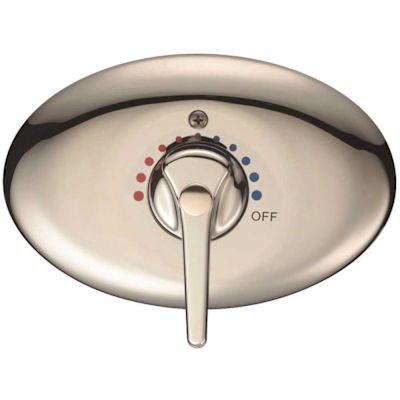

Product Overview

• Tub/shower installation
• Copper encapsulated thermostat assembly with brass shuttle, compensates for temperature fluctuations induced by water temperature and pressure changes
• Built-in shutoff for single handle operation
• Integral checkstops
• Cast wall flange and lever handle, polished chrome plated
• Maximum operating pressure: 125 PSI (860 KPA)
• Adjustable high temperature limit stop set for 110 degree F (43 degree C)
• Color-coded dial
• 1/2" sweat inlets and outlet, threaded bottom outlet
• Capacity of 4 GPM (15 l/min)
• Minimum 1.5 GPM
• Certifications ASSE 1016 City of Los Angeles cUPC

Specifications
