Eaton 10 Terminal Ground Bar Kit
Item # 794002
|
Eaton
Part #
GBK1020
|
UPC Code 782114014554
|
UNSPSC Code 39121613
|
Catalog Page #1076
Product Overview

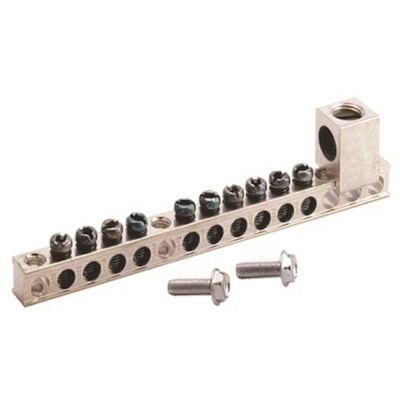

The Eaton 10-Terminal Grounding Bar Kit is suitable for use with type BR load centers or type CH load centers. Ground bars are required in all panels (main service panels include ground and neutral). To be sure you are selecting the correct ground bar, divide the number of circuits in the panel by 2 and pick the closest numbered ground bar. For example, a 20 circuit panel would require a GBK10P. The kit includes a 10-terminal ground bar and one 2/0 lug.
- For use as a grounding bar in a load center
- Suitable for use with type BR load centers or type CH load centers
- 10 terminals
- One 2/0 lug
Documentation
SpecificationSpecifications
Certifications and Listings
UL Listed
Manufacturer Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first
Number of Positions
10
Product Depth (in.)
5.3
Product Height (in.)
1.2
Product Weight (lb.)
0.2
Product Width (in.)
0.6
Certifications
UL
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first
