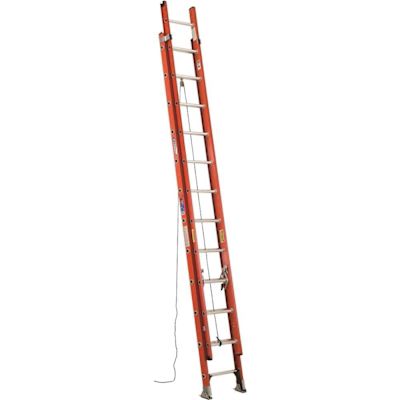

Werner 24 ft. Fiberglass Extension Ladder (23 ft. Reach Height) with 300 lb. Load Capacity Type IA Duty Rating

Item # 801744 | Werner Part # D6224-2 | UPC Code 051751019117 | UNSPSC Code 30191501 | Catalog Page #1459
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

Designed for safety, the Werner 24 ft. Fiberglass Extension Ladder is built with non-conductive rails that make it ideal for working near electricity. With a duty rating of 300 lbs., the ladder offers long-lasting durability and security, featuring the exclusive ALFLO rung joint for twist-proof performance. Offering versatility for a variety of jobs, the base and fly sections separate easily so you can use the base section as a single ladder. The durable rail shield bracket and shoe help protect the bottom of the rail, and the fly section rails are pre-pierced at the top for easy field installation of accessories. Additional features include the slip-resistant, TRACTION-TRED D-rungs, interlocking side rails and dual action feet that swivel easily for use on hard or penetrable surfaces.

  • Fiberglass construction offers safety around electricity
  • 24 steps provide easy access to second stories
  • 300 lbs. duty rating for ample support
  • Slip-resistant, TRACTION-TRED D-rungs provide secure footing as you climb or stand on ladder
  • Smooth operating pulley with durable polypropylene rope
  • Interlocking side rails with internal rail guides on bottom of fly section securely connect rails
  • External guides at top of base section securely interlock rails
  • Heavy-duty extruded rung locks are spring loaded to operate smoothly
  • Pre-pierced holes for easy field installation of accessories
  • Base and fly separate easily to use base section as single ladder
  • Combination rail shield bracket and shoe feature SHU-LOK and slip-resistant pad for stability
  • Molded rung braces on bottom step for increased durability
  • Mar-resistant molded end caps help protect walls and ladder
  • Weather resistant for outdoor use
  • OSHA compliant for safety

Specifications

Certifications and Listings
ANSI Certified, OSHA Certified
Color
Red
Features
Folding, Hardware Included
Height
24 ft.
Industry Standard Ladder Height (ft.)
24
Ladder Type
Extension
Load weight capacity
300 lb.
Manufacturer Warranty
na
Material
Fiberglass
Number of Steps
24, 24 Step
Product Weight (lb.)
52
Rung/Step Depth
1.6
Step Rise (in.)
12
Weight Capacity
300 lb.

Warranty

na
