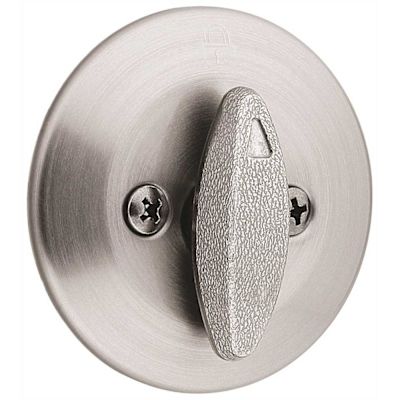

Kwikset 663 Satin Chrome Single-Sided Deadbolt

Item # 803449 | Kwikset Part # 96630-055 | UPC Code 883351432627 | UNSPSC Code 46171500 | Catalog Page #1511
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

As the industry leader, Kwikset has provided trusted security for over 70-years and has become synonymous with security, peace of mind, style and innovation. The largest-selling deadbolt, the 600 series provides tough, effective protection at an affordable price. This single-sided deadbolt is operated by the thumb turn on the inside. There is a blank plate or no trim on the outside. The Satin Chrome finish gives the product a modern and minimalist look.

  • Deadbolt operated by thumb turn on interior, no trim on exterior
  • ANSI/BHMA grade 3 certified
  • Latch has 2 3/8 in. backset
  • Includes square deadbolt strike
  • 1 in. deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Specifications

Assembled Depth (in.)
0.084
Assembled Height (in.)
3.4
Assembled Width (in.)
3.14
Backset size (in.)
Adjustable
Certifications and Listings
ANSI Certified
Color
Satin Chrome
Commercial/Residential
Residential
Deadbolt strike width (in.)
1
Door Handing
Universal
Door Locks & Knobs Product Type
Deadbolts
Finish
Satin Chrome
General Material
Metal
Handle Type
Touchless/None
Included
Installation Instructions, Mounting Hardware
Interior/Exterior
Exterior, Interior
Manufacturer Warranty
Lifetime mechanical and finish warranty
Product Weight (lb.)
0.55
Required door thickness (in.)
1-3/8 in to 1-3/4 in
Security/ANSI Grade
ANSI Grade 3 (Good)
Style
Modern

Warranty

Lifetime mechanical and finish warranty
