FASCO FAN COIL MOTOR, 5 IN., 230 VOLTS, 1550 RPM

Item # 812110 | FASCO Part # D1050A | UPC Code 815585027768 | UNSPSC Code 40101601 | Catalog Page #722
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

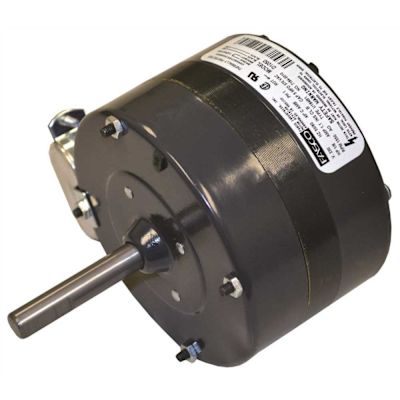

Fasco Fan Coil Motor

  • 1/8 H.P.
  • 1 Speed
  • 230 Volts
  • 1.10 Amps
  • Clockwise Rotation
  • POC4 Capacitor
  • 1550 RPM
  • Ball Bearings
  • 5" Diameter
  • Totally Enclosed
  • Band Mounting
  • 1.00 Service Factor
  • 2-3/4" Shaft Length
  • Permanent Split Capacitor Motor Type
  • Automatic Overload
  • 1 Phase
  • 1/2" Shaft Diameter
  • 1 Shaft
  • 60 Hertz
  • 1/2" x 3" Shaft Dimension
  • 3-1/4" Length Less Shaft
  • Permanent Split Capacitor Motor Type
  • Totally Enclosed
  • Clockwise Rotation
  • Automatic Overload

Documentation

Specifications

Color
Black, Silver
General Material
Metal
Horsepower
1/8
HVAC Amperage
1.1
HVAC Product Type
Evaporative Cooler
Motor Enclosure Type
Totally Enclosed Air Over (TEAO)
Motor Mount Type
Rigid Base
Nameplate RPM
1550
Part/Accessory Type
Motor
Phase
1
Product Depth (in.)
5
Product Height (in.)
10.7
Product Weight (lb.)
7.55
Product Width (in.)
5
Shaft Length (in.)
3
Voltage
230
