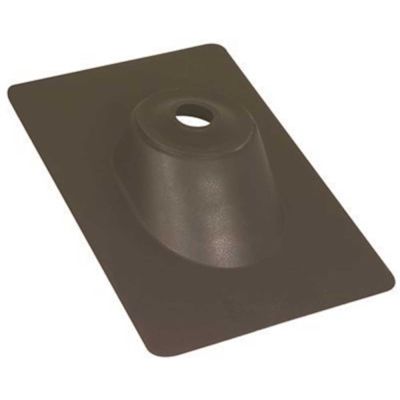

Water-Tite 81755 Roof Flashing, 9-1/4 in. x 13 in. Hard Plastic Base with Elastomer Collar, For 2 in. Vent Pipe

Item # 817212 | IPS Corporation Part # 81755 | UPC Code 076335119137 | UNSPSC Code 40101502 | Catalog Page #768
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

Create a secure seal around roof piping installations with Water-Tite Roof Flashing. Featuring an elastomer collar, this roof flashing has a thermoplastic hard base and fits any roof pitch to 45 degrees. It has been performance tested for ultraviolet, ozone and weather resistance and is approved for type "B" (gas) installations. Water-Tite Roof Flashing comes in a variety of models with different base sizes and pipe-size compatibilities.

  • Roof flashing with thermoplastic hard base
  • Elastomer collar, heat tested to 180 degree F (82 degree C)
  • Fits any roof pitch to 45 degree , approved for type "B" (gas) installations
  • Comes in a variety of models with different base sizes and pipe-size compatibilities
  • Performance tested for ultraviolet, ozone and weather resistance, do not use petroleum-base mastics, sealing compounds or paints on collar portion of all flashings, on all hardbase, flexible or rain collars

Specifications

Color
Black
Gauge
24
Manufacturer Warranty
Limited Lifetime Warranty For The Life Of The Current Roof System
Material
Plastic
Maximum Work Temperature
180 deg. F
Opening Diameter
2 in.
Pipe diameter (in.)
2
Product Length (in.)
13
Product Thickness (in.)
.025
Product Weight (lb.)
0.4
Product Width (in.)
9.25
Roof Flashing Type
Slide Over Flashing
Standard Color Family
Black

Warranty

Limited Lifetime Warranty For The Life Of The Current Roof System
