50-Watt 120-Volt High Pressure Sodium Replacement Ballast Kit

Item # 835193 | Keystone Technologies Part # HPS-50R-1-KIT | UPC Code 890949001684 | UNSPSC Code 39101902
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

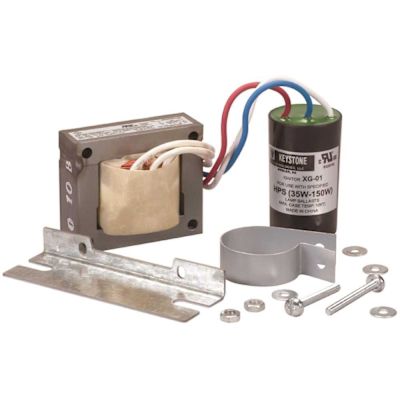

This Keystone 120-Volt High Pressure Sodium ballast kit operates one S68 50-Watt High Pressure Sodium lamp. The kit includes ballast, capacitor, mounting brackets and hardware. See the document below for complete specifications.

  • ANSI designation: S68
  • Line voltage: 120
  • Regulation: 5%
  • Frequency: 60 Hz
  • Recommended fuse (A): 8/5
  • Circuit type: R-NPF/R-HPF
  • Insulation class: 180 degree C
  • Capacitor value: 20 degree F (optional)
  • Capacitor voltage rating: 120-Volt
  • Capacitor temperature rating: 90 degree C
  • Winding materials: copper
  • Lamp starter: XG-01
  • Agency certification: RU, cRU
  • Maximum distance to lamp: 3 ft.
  • 2-year warranty

Specifications

ANSI Code
S68
Certifications and Listings
UL Recognized
HID Type
High Pressure Sodium
Input Volts
120
Light Bulb Base Code
No Base
Manufacturer Warranty
2 years
Number in Pack
1
Number of Lamps
1
Product Height (in.)
2.25
Product Length (in.)
2.64
Product Weight (lb.)
1.43
Product Width (in.)
.83
Starting Method
Programmed Start

Warranty

2 years
