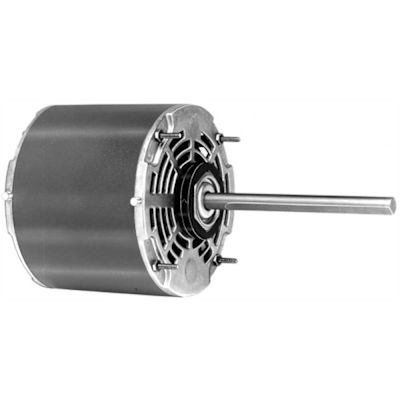

FASCO 5.625 in. 208/230 Volt 1075 RPM Blower Motor
Item # 836269
|
FASCO
Part #
D923
|
UPC Code 818508020624
|
UNSPSC Code 40101601
|
Catalog Page #719
Product Overview
This Fasco blower motor measures 5.625 inches. It has three speeds. The horsepowers are 1/3, 1/4, and 1/5.
- 2.90-2.20-1.70 Amps
- Reversible Rotation
- POC5 Capacitor
- 1075 RPM
- Sleeve Bearings
- 5-5/8 in. Diameter
- Open Enclosure
- 1.2 Load Factor
- Resilient Rings mounting
- 1.00 Service Factor
- 4 in. Shaft Length
- Permanent Split Capacitor Motor Type
- 48 Frame
- Automatic Overload
- 1 Phase
- 1/2 in.Shaft Diameter
- 1 Shaft
- 2.9 Full Load Amps
- 60 Hertz
- 1/2 in. x 6 in. Shaft Dimension
- 4-1/4 in. Length Less Shaft
Specifications
Amperage
0
Color
Gray, Silver
Frame
48
Horsepower
1/5
HVAC Product Type
HVAC Part
Manufacturer Warranty
NO
Motor Enclosure Type
Open Drip Proof (ODP)
Motor Mount Type
Ring
Motor Speed (RPM)
1075
Nameplate RPM
1075
Number of Phases
3
Number of Speeds
3
Pack Size
1
Phase
1
Product Depth (in.)
0.121
Product Height (in.)
3.25
Product Weight (lb.)
32
Product Width (in.)
0.121
Rotation
Reversible
Shaft Length (in.)
4
Voltage
230/208
Warranty
NO
