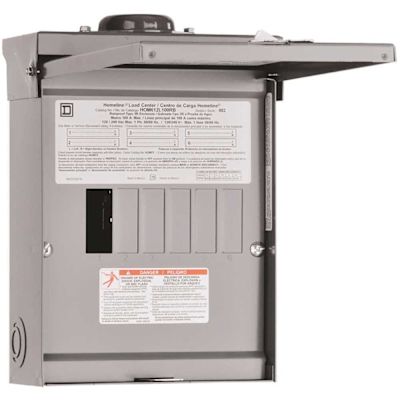

Square D Homeline 100 Amp 6-Space 12-Circuit Outdoor Main Lug Electrical Panel(HOM612L100RBCP)

Item # 100143240 | Square D Part # HOM612L100RBCP | UPC Code 047569071256 | UNSPSC Code 39121101 | Catalog Page #1061
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

The Square D Homeline 100 Amp 6-Space 12-Circuit Outdoor fixed Main Lugs Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline breaker boxes are engineered for fast installation and wire savings.

  • Durable Outdoor Design: Square D Homeline 100 Amp 6-Space 12-Circuit Outdoor Main Lug Load Center with a rainproof cover for reliable outdoor use
  • Includes a rainproof outdoor cover
  • Supports Secondary Surge Protection: Compatible with plug-on secondary surge arrestors (sold separately) for enhanced electrical safety
  • Flexible Wiring Options: Main feeders terminate from the top, with feeder entry possible from any direction (device is not rotatable)
  • Easy Wire Installation: Features knockouts on all sides of the breaker box for quick and hassle-free wire routing
  • Single-Phase, Outdoor Rated: Designed for outdoor installation with a 120/240 VAC rating and 10,000 AIR short circuit current rating
  • Rated 120/240 VAC and 10,000 AIR short circuit current rating
  • Secure and Theft-Resistant: Includes a rainproof cover with a stainless steel hasp that can be padlocked for added safety
  • Rugged Construction: Thermoplastic interior assembly offers industry-leading durability for long-term use
  • Convenient Screw Design: Slot/square drive screws allow use of either a flat blade or square-head screwdriver for secure and precise installation
  • Customizable Grounding Options: Includes 3 ground bar mounting locations (left, right, and end) for ease of wiring

Proposition 65 Information

Prop65 Warning Icon WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Certifications and Listings
UL Listed
Indoor/Outdoor
Outdoor
Manufacturer Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Maximum Amperage
100, 100 amp
NEMA Configuration
NEMA 3R
Number of Circuits
12, 12-Circuit
Number of Spaces
6, 6 Spaces
Product Depth (in.)
4.27
Product Height (in.)
12.65
Product Weight (lb.)
10.1
Product Width (in.)
8.88
Voltage
120/240, 120/240 volts

Warranty

Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
