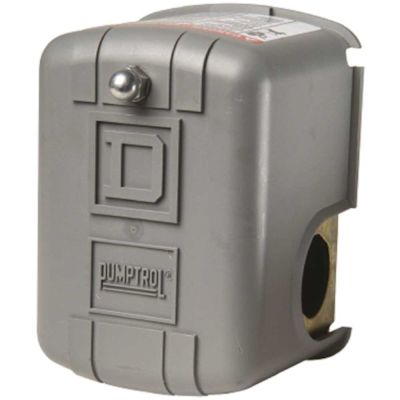

Square D 30-50 psi Pumptrol Well Pump Water Pressure Switch

Item # 100183740 | Square D Part # FSG2J21BP | UPC Code 047569115387 | UNSPSC Code 40151500 | Catalog Page #505
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

The Pumptrol FSG2J21BP electromechanical pressure switch by Square D is the most trusted brand in residential, commercial and industrial pumping applications. The FSG2J21BP has a 30 psi to 50 psi pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The NEMA 1 enclosure has a 1/4 in. NPSF internal fluid connection and screw clamp terminals. The switch works with a 1.5 HP or less pump. The adjustable differential range is 15 psi to 30 psi and the cut-out range is 20 psi to 65 psi. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified. For over 75 years, Square D pressure switches continue to meet the needs of our customers. Square D Pumptrol pressure switches are manufactured by Schneider Electric.The Square D by Schneider Electric Pressure Switch is compatible with jet pumps, submersible pumps and reciprocating pumps. The standard action contacts open on rising pressure.

  • Suitable for jet pumps, submersible pumps and reciprocating pumps
  • Standard-action contacts open on rising pressure
  • 30 - 50 PSI
  • 1/4 in. pressure connection
  • Standard action contacts open on rising pressure

Proposition 65 Information

Prop65 Warning Icon WARNING: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Brand Compatibility
Various
Manufacturer Warranty
18 months
Pack Size
1
Product Depth (in.)
4.2
Product Height (in.)
7.5
Product Weight (lb.)
0.93
Product Width (in.)
5.5

Warranty

18 months
