Product Overview

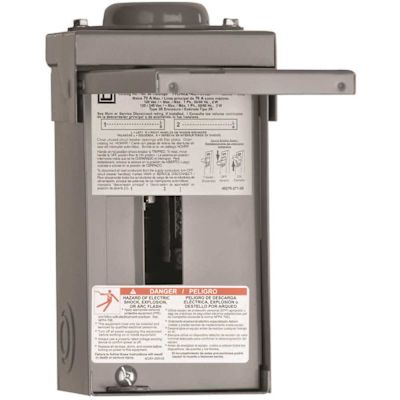

The Square D Homeline 70 Amp 2-Space 4-Circuit Outdoor Main Lugs Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline breaker boxes are engineered for fast installation and wire savings.

• Square D Homeline 70 Amp 2-Space 4-Circuit Outdoor Main Lug Load Center
• Includes a rainproof outdoor cover, and is for use as a main lug load center in fixed applications
• Accommodates plug-on secondary surge arrestor (sold separately)
• Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
• Knockouts located on all sides of breaker box to ease wire installation
• Single phase, for outdoor installation
• Rated 120/240 VAC and 10,000 AIR short circuit current rating
• Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque

Proposition 65 Information

WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Warranty

Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
