Product Overview

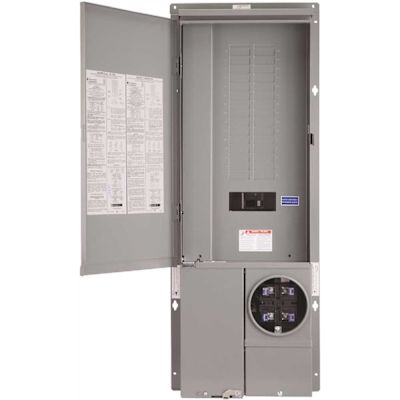

The Square D by Schneider Electric Homeline 200 Amp 30-Space 42-Circuit Outdoor Solar-Ready Combination Meter Socket and Main Breaker Load Center for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This combination service entrance device (CSED) is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers, including Plug-on Neutral. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline CSEDs are engineered for fast installation and wire savings.

• Square D Homeline 200 Amp 30-Space 42-Circuit Outdoor Ring-Type Semi-Flush Mount Solar-Ready Main Breaker Plug-On Neutral CSED
• Includes a fully distributed neutral bar, compatible with all Homeline breakers, including plug-on neutral combination arc fault and dual function breakers on any space
• Solar-ready for new or future installations with provisions for field-installed CT's on line bus
• Accepts solar ready sub-feed lug kit SR69064A for solar connections ahead of the main breaker (sold separately)
• Includes Factory-installed 200 Amp main breaker
• Bus bars rated 225 Amp maximum
• Rated 120/240 VAC and 22,000 AIR short circuit current rating
• Ground and neutral bars accept up to (3) #10-14 equipment grounds
• 4 jaw ring type meter socket. Bypass type-none
• Semi-flush mount NEMA type 3R enclosure for outdoor installation
• Order tunnel kit SCTKP30 separately for overhead service applications
• Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
• Accommodates plug-on secondary surge arrestor, and features a plug-in design for easy installation
• Designed with straight-in mains to save expensive cable and time
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
• UL listed, ANSI certified, and meets EUSERC specifications

Proposition 65 Information

WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Warranty

Square D/Schneider Electric warrants its single-phase load centers and combination service entrance devices to be free from defects in material and workmanship, under normal care and proper usage in a residential installation, for a period of 10 years from the date of installation, when used with Square D/Schneider Electric circuit breakers.
