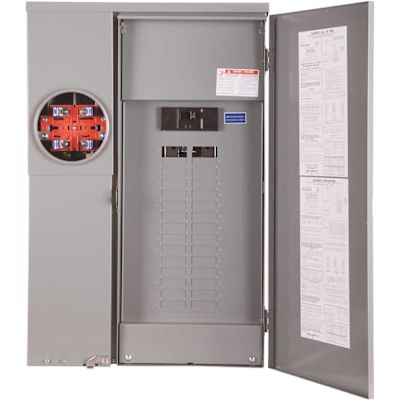

Square D Homeline 200 Amp 30-Space 42-Circuit Outdoor Ring-Type Surface Mount Solar-Ready Main Breaker Plug-On Neutral CSED
Product Overview
The Square D Homeline 200 Amp 30-Space 42-Circuit Outdoor Surface Mount Solar-Ready Combination Meter Socket and Main Breaker Load Center for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This combination service entrance device (CSED) is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline CSEDs are engineered for fast installation and wire savings.
- Square D Homeline 200 Amp 30-Space 42-Circuit Outdoor Ring-Type Surface Mount Solar-Ready Main Breaker Plug-On Neutral CSED
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault and dual function breakers on any space
- Solar-ready for new or future installations with provisions for field-installed CTs on line bus
- Accepts solar ready sub-feed lug kit SR69064A for solar connections ahead of the main breaker
- Meets EUSERC specifications
- Factory-installed 200 Amp main breaker
- Rated 120/240 VAC and 22,000 AIR short circuit current rating
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- 4 jaw ring type meter socket
- Surface mount NEMA type 3R enclosure for outdoor installation
- Accommodates plug-on secondary surge arrestor, and features a plug-in design for easy installation
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Bypass type-none
- UL Listed and ANSI certified
Proposition 65 Information
WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Documentation
Owner's ManualSpecifications
Warranty
Square D/Schneider Electric warrants its single-phase load centers and combination service entrance devices to be free from defects in material and workmanship, under normal care and proper usage in a residential installation, for a period of 10 years from the date of installation, when used with Square D/Schneider Electric circuit breakers.
