Product Overview

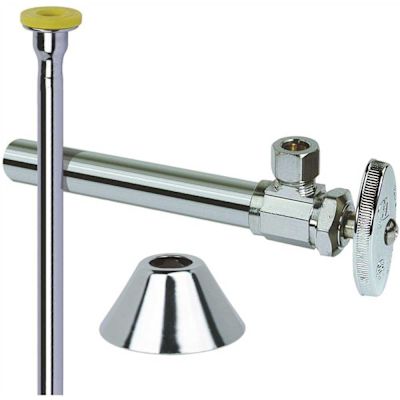

BrassCraft Toilet Supply Kit everything you need to connect your water supply to your toilet. Components include: (1) 1/2 in. Nominal Sweat inlet x 3/8 in. O.D. Compression outlet multi-turn angle water shut-off valve with 5 in. Sweat Extension Tube (1) 3/8 in. O.D. x 12 in. L copper riser and (1) bell flange. An angle valve is most often used when the water pipe enters the room from the wall. 5 in. extension tube slides over existing 1/2 in. nominal copper water pipe, sweat connection. May be cut to required length using a tube cutter. All components are chrome-plated for a clean professional appearance.

• Kit includes: (1) 1/2 in. nominal sweat x 3/8 in. O.D. compression multi-turn angle valve with 5 in. extension tube, (1) 12 in. toilet riser and (1) bell escutcheon
• Valve compatible with 1/2 in. nominal (5/8 in. O.D.) copper pipe
• 5 in. extension tube slides over existing 1/2 in. nominal copper pipe, sweat connection, may be cut to required length
• Valve has a machined, 1-piece brass body for strength, durability and long-lasting performance
• Valve controls water flow with a few turns of the handle
• 3/8 in. O.D. x 12 in. riser features standard gasket nosepiece
• Riser is cut-to-length for flexible fit and clean, professional appearance
• Chrome finish
• For use in potable water distribution systems in accessible locations only
• Temperature rating: 40 degree F to 140 degree F
• Pressure rating: 125 psi maximum
• No-lead certified
• IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Specifications

Warranty

Limited Manufacturer Warranty
