Tectite 1/2 in. Copper Push-to-Connect x 8 in. 90-Degree Stub-Out Elbow

Item # 301492496 | Tectite Part # FSBSTUB8 | UPC Code 670750959493 | UNSPSC Code 40172800 | Catalog Page #421
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

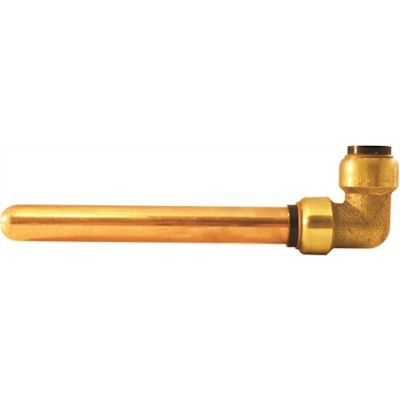

The Tectite by Apollo 1/2 in. x 8 in Copper Pipe Push-To-Connect Stub-out Elbow is typically used during the rough-in phase. Once the fixture is ready to be installed, simply cut the end of the stub-out. Install the fitting or valve necessary to make the final connection to the fixture.

  • Constructed of lead free dezincification resistant (DZR) brass and copper for superior reliability and strength
  • Push-to-connect joints require no heat, solder, solvents or tools
  • Push-to-connect design allows for a simple and fast installation of water heaters to any combination of copper, PEX, CPVC or PE-RT pipe
  • Fittings can be rotated after being installed for ease of use in tight spaces
  • Ideal for potable water and hydronic heating applications
  • Quarter turn lever handle for simple flow control
  • Meets UPC, IPC, and cUPC standard requirements and listed by IAPMO and listed to ASSE 1061/NSF 58
  • Demount clip allows for valve removal (included)
  • Approved for behind-the-wall with no access and burial
  • Corrosion resistant for greater longevity
  • Maximum working pressure of 200 psi and maximum temperature of 250 degree F

Proposition 65 Information

Prop65 Warning Icon WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. Further information available at www.p65warnings.ca.gov.

Specifications

Bend Degree
90 Degree
Color
Copper
Connection 1
PTC
Connection 2
PTC
Features
Adjustable, Corrosion Resistant, Lead Free, Removable
Fitting 1 size
1/2"
Fitting 2 size
1/2"
Fitting or Connector Type
Elbow
Manufacturer Warranty
Lifetime: For exclusive use with:PEX - ASTM F876/CSA B137.5Copper - ASTM B 88 hard drawn copper tube K, L, & MCPVC - ASTM D2846 or CSA B137.6PE-RT - ASTM F2769
Material
Brass
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Depth (in.)
1.08
Product Height (in.)
1.74
Product Weight (lb.)
0.28
Product Width (in.)
8.25
Standard Color Family
Copper

Warranty

Lifetime: For exclusive use with:PEX - ASTM F876/CSA B137.5Copper - ASTM B 88 hard drawn copper tube K, L, & MCPVC - ASTM D2846 or CSA B137.6PE-RT - ASTM F2769
