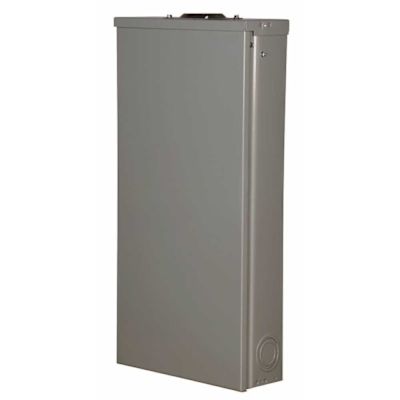

Eaton BR 200-Amp 40-Circuit 20-Space Outdoor Main Breaker Plug-On Neutral Load Center with Cover (BRP20B200R)

Item # 307648491 | Eaton Part # BRP20B200R | UPC Code 786689059255 | UNSPSC Code 39121101 | Catalog Page #1073
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

Specially designed for easy installation, Eaton's BR 1-inch loadcenters house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

  • Amperage rating: 200 Amp
  • Cover: cover included
  • Enclosure: NEMA 3R
  • Interrupt rating: 22 kAIC
  • Bus material: aluminum
  • Used with: type BR 1 in. breakers
  • BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings
  • Dedicated neutral bus for breaker connection
  • In-board neutral bar increases gutter space to allow for professional installation of conductors
  • Backed out neutral screws allows for quick connection of neutral and ground conductors
  • Optimized knockout locations for additional access and easier to remove
  • Self-leveling tabs allow for quick drywall offset and helps simplify installation
  • Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications
  • Rigid cover spine provides strength when twist outs are removed allowing for easier removal

Specifications

Certifications and Listings
UL Listed
Indoor/Outdoor
Outdoor
Manufacturer Warranty
10 Year Per Warranty Statement
Maximum Amperage
200, 200 amp
NEMA Configuration
NEMA 3R
Number of Circuits
40, 40-Circuit
Number of Spaces
20, 20 Spaces
Product Depth (in.)
29
Product Height (in.)
5.5
Product Weight (lb.)
19
Product Width (in.)
14.31
Voltage
120/240, 120/240 volts

Warranty

10 Year Per Warranty Statement
