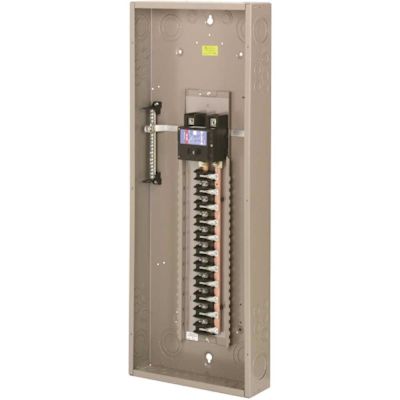

Eaton 200 Amp CH 42-Space 42-Circuit Indoor Main Breaker Load Center Plug on neutral

Item # 308299195 | Eaton Part # CHP42B200 | UPC Code 786689054601 | UNSPSC Code 39121101
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

Eaton's Cutler-Hammer Type CH Load centers (also known as a breaker box) include a 1-piece copper bus. This absence of bolted connections virtually eliminates the chance of hot spots or faults, ensuring a longer product life. Our standard 14-3/8 in. W enclosures fit snugly between wall studs. A variety of knockouts allows for more wiring configurations, while predrilled mounting holes provide easy installation of additional ground bars, if desired. Type CH Load centers have a lifetime warranty and accept Cutler-Hammer Type CH (3/4 in.) breakers.

  • 42-space
  • 200 Amp
  • Cover included
  • Lifetime warranty

Specifications

Certifications and Listings
UL Listed
Indoor/Outdoor
Indoor
Manufacturer Warranty
Limited lifetime
Maximum Amperage
200, 200 amp
Number of Circuits
84, 84-Circuit
Number of Phases
1
Number of Spaces
42, 42 Spaces
Product Depth (in.)
4.25
Product Height (in.)
38.5
Product Weight (lb.)
35.75
Product Width (in.)
15.75
Voltage
240/120, 240/120 volts

Warranty

Limited lifetime
