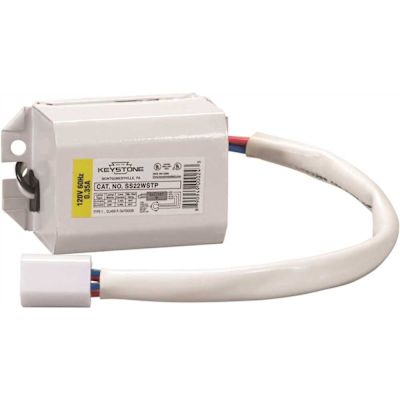

Keystone Technologies 22-Watt 1-Lamp T9 Preheat Electromagnetic Fluorescent Replacement Ballast

Item # 3574379 | Keystone Technologies Part # SS22WSTP | UPC Code 890949000243 | UNSPSC Code 39101901 | Catalog Page #899
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

Keystone Technologys T9 Preheat electromagnetic ballast is designed to operate 1 Circle line lamp. Featuring 120-Volt input and high-power factor design. See the document below for complete specifications including additional lamp wattages compatible with this ballast.

  • Sound rated: A
  • Minimum starting temperature: 32 degree F, 0 degree C
  • Maximum case temperature: 194 degree F, 90 degree C
  • UL, cUL 935 Listed (class P, outdoor, type 1)
  • Thermal protection

Specifications

Ballast Kit
NO
Certifications and Listings
UL Listed
Dimmable
No
Electronic/Magnetic
Magnetic
Input Volts
120/277
Length
3.1 in.
Light Bulb Base Code
No Base
Manufacturer Warranty
3 years
Minimum Starting Temp
50 deg. F
Minimum Temperature for Use (F)
0
Number in Pack
1
Number of Lamps
1
Product Height (in.)
1.42
Product Length (in.)
3.1
Product Weight (lb.)
.78
Product Width (in.)
1.89
Starting Method
Programmed Start
Voltage
120 Volt
Wattage
22 Watt
Certifications
UL

Warranty

3 years
