Hydraulic Gate Closer
Product Overview

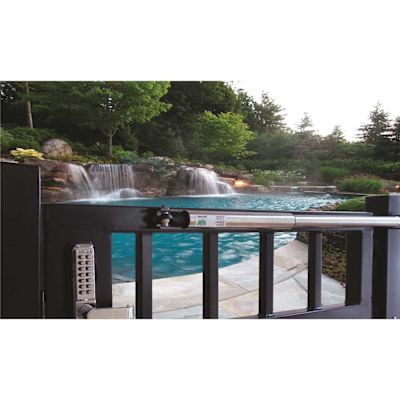

The TB600 Turtle Back Hydraulic Gate Closer from LockeyUSA offers firm, quiet hydraulic action for easy closing of pedestrian gates. This gate closer features a top-of-the-line design with a high performing cylinder for a superior product. With a pre-set closing speed delivering controlled closure, the TB600 automatic gate closer secures pedestrian gates up to 72 inches in width, and up to 250 pounds. Hotel pool gates, parking lot access gates, beach access gates, office complex gates, resort gates, and barrier gates highlight a few of the many places this gate closer can be applied. The TB600 is a reliable, high-quality gate closure that gives you convenient security and is often used in conjunction with the LockeyUSA 2835, 2830, 1150 and SUMO GL2 gate lock. This powerful hardware combination provides secured, self-closing access control with the convenience of a keyless entry system.
- Closes small and large gates from 150 lbs. to 250 lbs.
- Hydraulic/nitrogen gas controlled closing speed
- Installs on top/middle/bottom
- Works with left and right hand gates
- Mounts on opening side of gate
- Pushes the gate closed
- Mounting brackets and fitting bar included
- Not compatible with gates less than 30 in. W
- To retain product warranty and restrict gate opening angle, a gate stop must be installed
- Gate width: 44 in. to 72 in.
- Maximum opening angle: 100 degree
- Minimum operating temperature: 15 degree F, maximum operating temperature: 122 degree F
- Type of gate material: vinyl, steel, wood, chain link
- Closing/latch method: hydraulic/nitrogen gas
- Material: steel or stainless steel color: TB600: black, TB600SS: silver finish: TB600: painted, TB600SS: stainless steel
- Hinge arrangements: in-line or offset
- Opening pressure: approximate 8 lbs. to 18 lbs.
Specifications
Warranty
One Year Warranty, must be sent in for warranty
