Product Overview

High Capacity Thermostatic Radiator Valves with T104 Actuators provide control of temperature by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements. Continually monitor and adjust room temperature for consistent comfort and relief from under-heating and overheating. Designed with the higher capacity normally required by North American heating systems.

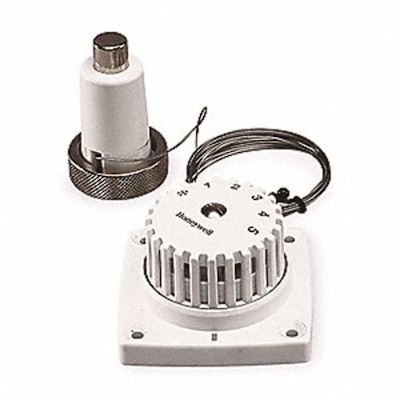

• Controller with combined remote setpoint and sensor mounted on a wall. Setpoint/sensor connect with a capillary tube to an actuator, which mounts on the valve body. For V110 valves
• Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems
• Nickel-plated bronze casted body with working parts in cartridge insert for ease of service
• All working parts are replaceable while valve remains in service, in-line, under pressure
• Controls include sensor, set point dial and valve actuator; components may be integral or connected by capillary tubes
• Require no electrical connections
• Meet ASHRAE standard 102-1989
• 40 mm collar diameter
• Temperature Range (F) 48 degree F to 79 degree F
• Capillary Length (ft)6 ft. 8 in.

Warranty

3-YEAR WARRANTY
