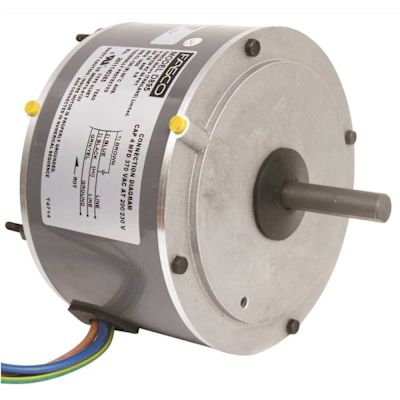

FASCO CONDENSER FAN MOTOR, 5-5/8 IN., 208 / 230 VOLTS, 0.8 AMPS, 1/8 HP, 1,650 RPM

FASCO CONDENSER FAN MOTOR, 5-5/8 IN., 208 / 230 VOLTS, 0.8 AMPS, 1/8 HP, 1,650 RPM

Item # 836268 | FASCO Part # D895 | UPC Code 818508020518 | UNSPSC Code 40101700 | Catalog Page #717

Log in to see your price.



FASCO CONDENSER FAN MOTOR, 5-5/8 IN., 208 / 230 VOLTS, 0.8 AMPS, 1/8 HP, 1,650 RPM

Item # 836268 | FASCO Part # D895 | UPC Code 818508020518 | UNSPSC Code 40101700 | Catalog Page #717
FASCO CONDENSER FAN MOTOR, 5-5/8 IN., 208 / 230 VOLTS, 0.8 AMPS, 1/8 HP, 1,650 RPM
Open Expanded View
Qty:

Log in for product availability.

Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print
Product Overview Documentation Specifications

Product Overview

Fasco Condenser Motor

  • 1/8 H.P.
  • 1 Speed
  • 208-230 Volts
  • 0.8 Amps
  • CW Rotation
  • POC4 Capacitor
  • 1650 RPM
  • Sleeve Bearings
  • 5-5/8" Diameter
  • Totally-Enclosed Enclosure
  • Stud Mounting
  • 1-1/2" Shaft Length
  • Permanent Split Capacitor Motor Type
  • 48 Frame
  • Automatic Overload
  • 1 Phase
  • 1/2" Shaft Diameter
  • 60 Hertz
  • 1/2" x 1-1/2" Shaft Dimension
  • 3-1/4" Length Less Shaft

Documentation

Product Brochure

Specifications

Color
Black, Silver
General Material
Metal
Horsepower
1/8
HVAC Amperage
0.8
HVAC Product Type
Evaporative Cooler
Motor Enclosure Type
Open Drip Proof (ODP)
Motor Mount Type
Stud
Nameplate RPM
1650
Number of Speeds
1
Overall Length
4.75 in.
Overload Protection
Automatic
Pack Size
1
Part/Accessory Type
Motor
Phase
1
Product Depth (in.)
5.6
Product Height (in.)
4.75
Product Weight (lb.)
10
Product Width (in.)
5.6
Shaft Length
1.5 in.
Shaft Length (in.)
2
Shaft Type
D-Profile
